Cite this Article
MEI Shuang-Li, CHEN Wen, CHEN Shang-Feng, 2015: On the Relationship between the Northern Limit of Southerly Wind and Summer Precipitation over East China. Atmospheric and Oceanic Science Letters, 8(1): 52-56
Permissions
Copyright©2014, Editorial office of Atmospheric and Oceanic Science Letters
This is an Open Access article under the terms of CCAL.
On the Relationship between the Northern Limit of Southerly Wind and Summer Precipitation over East China
MEI Shuang-Li1,2, CHEN Wen1, CHEN Shang-Feng1
1 Center for Monsoon System Research, Institute of Atmospheric Physics, Chinese Academy of Sciences, Beijing 100190, China
 2 University of Chinese Academy of Sciences, Beijing 100049, China
Corresponding author: MEI Shuang-Li, shuanglimei@gmail.com
Abstract

The relationship between the summer northernmost position of southerly wind and precipitation over East China is investigated. The northern limit of summer southerly wind index (INLSSW) over East China is defined as the latitude where the zonal-averaged (105-120°E) low-level meridional wind is equal to zero. Results show that there is a significant negative (positive) correlation between INLSSW and summer precipitation over the Yangtze River (North China) region. Thus, the proposed INLSSW may have implications for the prediction of summer precipitation anomalies in these regions. In positive INLSSW years, a cyclonic circulation anomaly is observed over the tropical western North Pacific and an anticyclonic circulation anomaly is seen over the subtropics of East China, accompanied by southerly anomalies over East China. This leads to above-normal moisture penetrating into the northern part of East China. In addition, significant upward (downward) motion anomalies can be found over the North China (Yangtze River) region. As a result, there are significant positive (negative) precipitation anomalies over the North China (Yangtze River) region. Further examination shows that sea surface temperature anomalies over the tropical eastern Pacific and Indian Ocean both contribute to the formation of INLSSW-related circulation anomalies over the tropical western North Pacific.

Keyword: northern limit of southerly wind; precipitation; Yangtze River; North China
1 Introduction

The East Asia summer monsoon (EASM) is one of the most important climate systems over East Asia (Wang et al., 1999; Lau et al., 2000; Wang et al., 2001). Interannual variability of the EASM can have substantial effects on social and economic activity in the East Asian region. Hence, it is of great importance to predict the interannual variation of the EASM (Lau and Li, 1984; Ninomiya and Murakami, 1987; Tao and Chen, 1987).

In the EASM region, many researchers have devoted themselves to identifying an index that adequately represents the strength of the EASM. The mei-yu rainfall is often considered representative of the EASM (Tanaka, 1997; Chang et al., 2000a, b; Huang et al., 2004). However, since rainfall has complex structures, circulation parameters are utilized instead of rainfall to define the monsoon. The definitions of different EASM indices are summarized in the work of Wang et al. (2008).

For the representation of the northernmost location of the boundary of the EASM, one category of indices is defined based on air masses, i.e., the northern edge of the interaction between warm/wet air masses from the tropical low latitudes and cold/dry air masses from the westerly wind belt in East Asia (Tu and Huang, 1944). Another category is based on the seasonal northward shift of the EASM rain belt (Tao and Chen, 1987; Wang and Lin, 2002). More recently, Hu and Qian (2007) proposed a new method that integrates both the air mass and rainfall perspectives. However, although the study about the definition of the EASM indices has made great progress, consensus has not yet to be reached regarding the definition of indices that adequately represent the strength and northernmost location of the EASM. In particular, much more research on the northern boundary of the EASM is needed.

A number of studies have advanced our understanding of the relationship between summer monsoon and rainfall in China. Wang et al. (2008) mentioned that a strong summer monsoon can reach farther north in China, and the northern limit of the southerly penetration was emphasized. At the moment, it corresponds to increased rainfall in northern China and deficient mei-yu rainfall. Ding and Chan (2005) suggested that the strength of the Chinese summer monsoon emphasizes the rainfall in northern, since the conventional concept of a strong summer monsoon used by Chinese meteorologists implies a weak mei-yu period. Ding (2004) suggested that if the summer monsoon is too weak to reach northern China or has a very short duration, below-normal rainfall anomalies are observed over northern China and droughts often arise, and vice versa. However, most of the above- mentioned studies focused on the strength of the summer monsoon, and there have been few studies conducted from the viewpoint of the limit of southerly wind.

The present study examines the relationships among the northernmost position, strength and precipitation of the summer monsoon in East China, and explains the causes that are contributed to these relationships. The paper begins by defining the northernmost limit of summer southerly winds over East China, based on the meridional wind component. Then, indices representing the East China summer monsoon and rainfall strength are defined. The interannual relationships between the EASM and rainfall strength indices and the northern limit of summer southerly winds are examined. In addition, the possible mechanisms responsible for these relationships are analyzed. The paper is structured as follows: section 2 describes the data used in the study; section 3 presents the definition of the northern limit of summer southerly winds over East China (NLSSW), analyzes the relationships among NLSSW index (INLSSW), precipitation and EASM strength over East China, and illustrates the atmospheric circulation and SST anomalies associated with INLSSW; section 4 concludes the study.

2 Data description

This study uses the monthly mean horizontal winds from the National Centers for Environmental Precipitation/National Center for Atmospheric Research (NCEP/NCAR) reanalysis from 1948 to present (Kalnay et al., 1996), and the European Centre for Medium-Range Weather Forecasts 40-yr reanalysis dataset (ERA40) from 1958 to 2001 (Uppala et al., 2005). The horizontal winds are available on 2.5° × 2.5° grids for both datasets. We also use monthly mean precipitation from 160 Chinese weather stations for the period from 1951 to present, provided by the China Meteorological Administration. In addition, the monthly mean SST used in this study are from the Hadley Centre Sea-ice and Sea-surface Temperature Data Set Version 1 (HadSSTI). The HadSSTI dataset has a horizontal resolution of 1° × 1° and covers the period from 1870 to present. Considering the time periods covered by each of the datasets, the study period adopted in this study, i.e., the period that all datasets have in common, is 1958-2001. Note that the horizontal wind data presented in this study are the ensemble mean of the NCEP/NCAR and ERA40 reanalysis data.

3 Results
3.1 Definition of the northern limit of summer southerly winds over East China

In this section, we first discuss the definition of the northern limit of summer (June-July-August-averaged; JJA) southerly INLSSW. The INLSSW is defined as the latitude where low-level (averaged between 925 hPa and 850 hPa) meridional wind averaged between 105° E and 120° E (the definition of East China in this study) is equal to zero. On the one hand, 105° E could be considered as the dividing line between the EASM and the South Asian summer monsoon, and the southwest monsoon flow northward to the east of the Tibetan plateau. On the other hand, this range is the dominant region of summer monsoon and precipitation over East Asia. Figure 1 displays the detrended and normalized time series of INLSSW. From Fig. 1, significant interannual variability of INLSSW can be observed.

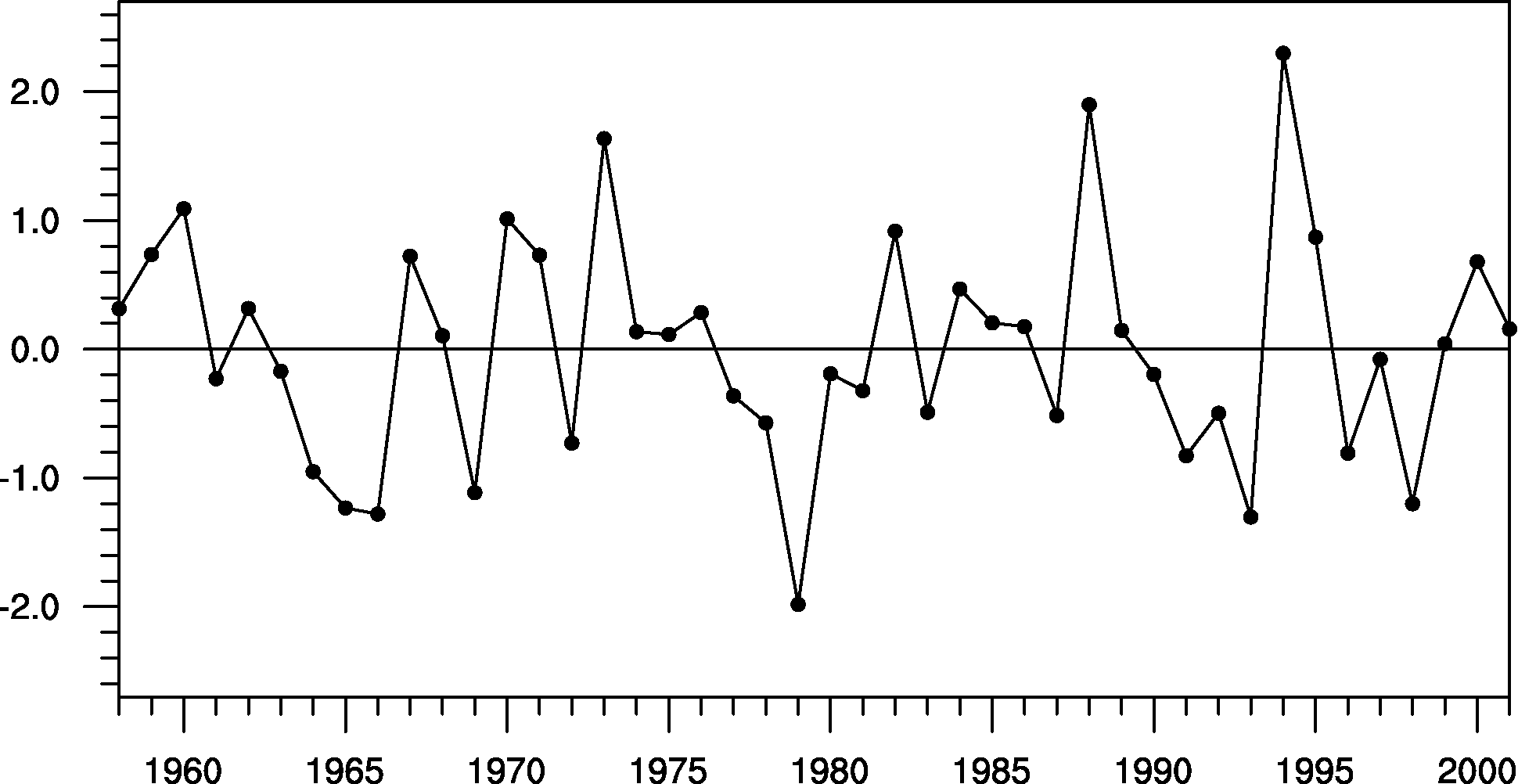

Figure 1 Normalized and detrended time series of the northern limit of summer (June-July-August-averaged; JJA) southerly wind index (INLSSW).

3.2 Relationships of INLSSW with precipitation and the EASM

In this subsection, we investigate the relationships of INLSSW with EASM index and precipitation anomalies averaged over different regions in China. Detailed information on the definition of these indices is provided in Table 1. Note that the selection of northern China (36-42° N), the Yangtze River (27-35° N), and southern China (20-26° N) follows the study of Wang et al. (2008).

The limit of southerly wind has a significant positive (negative) correlation with the rainfall in the Yangtze River (North China) region. The correlation coefficient between INLSSW (detail definition is provided in Table 1) and rainfall in the Yangtze River (North China) region is -0.32 (0.28), exceeding the 95% (90%) confidence level (Table 2), which indicates that the precipitation in the Yangtze River (North China) region decreases (increases) when extensive southerlies penetrate inland to farther north in China. However, the correlation of INLSSW and precipitation anomalies over southern China is statistically insignificant and weak (Table 2). To further confirm the relationship between INLSSW and rainfall in summer over China, Fig. 2 shows the precipitation anomalies in the simultaneous summer (JJA) obtained by regression on the INLSSW. Significant and positive (negative) precipitation anomalies are observed over the northern (central) part of East China. Over the southern part of East China, precipitation anomalies are not significant at the 95% confidence level.

Table 1 The description of indices.
Table 2 Correlation coefficients between the limit of southerly wind and precipitation and monsoon strength indices in summer over China for the period 1958-2001: statistically at the * 90%, * * 95%, and * * * 99% confidence level.

To study the relationships between INLSSW and monsoon strength, the INLSSW and the strength of the u- and v-component of wind are examined. The correlation coefficients between INLSSW and IV2 and IV3 (definitions are provided in Table 1) are 0.42 and 0.56, both exceeding the 99% confidence level. The INLSSW has an insignificant correlation with the strength of IU1, IU2, and IU3 (definitions are provided in Table 1) in China (Table 2).

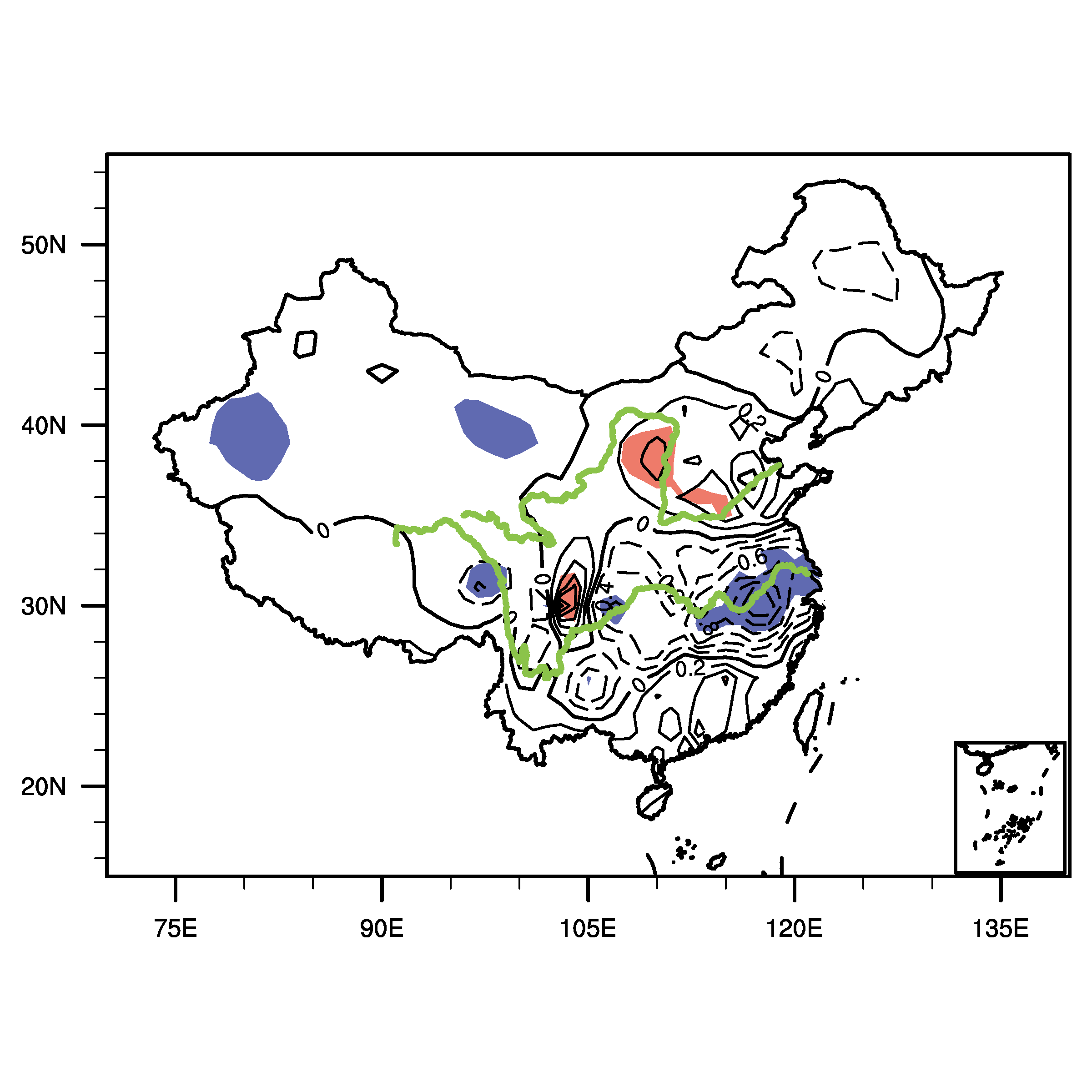

Figure 2 Anomalies of precipitation in JJA regressed on the INLSSW during 1958-2001. Red (Blue) shading denotes positive (negative) anomalies that are significantly different from zero at the 95% confidence level. Contour interval is 0.2 mm.

A number of summer monsoon indices were summarized in the work of Wang et al. (2008). To assess whether the INLSSW defined in the study has a close correlation with these previously defined EASM indices, we perform comparative analyses. Four EASM indices defined by (1) Wang et al. (1998), (2) Wang and Fan (1999), (3) Li and Zeng (2002), and Zhang et al. (2003) were selected. Detailed definitions of these four selected EASM indices can be found in the study of Wang et al. (2008). Table 2 shows that the correlation coefficients between INLSSW and the EASM defined by IZTC (0.18), IWF (0.19), ILZ (0.29) (definitions are provided in Table 1), and IWDJ (0.29) are less than the 95% confidence level. This indicates that the INLSSW defined in this study is independent of the EASM indices defined in previous studies (Wang et al., 2008).

3.3 Atmospheric circulation and sea surface temperature anomalies in association with INLSSW

To explain the above-mentioned relationships between INLSSW and precipitation anomalies, we show the anomalies of vertical velocity at 500 hPa obtained by regression on the INLSSW in Fig. 3. The results indicate that negative (positive) precipitation anomalies over the central (northern) part of East China correspond to downward (upward) motion anomalies.

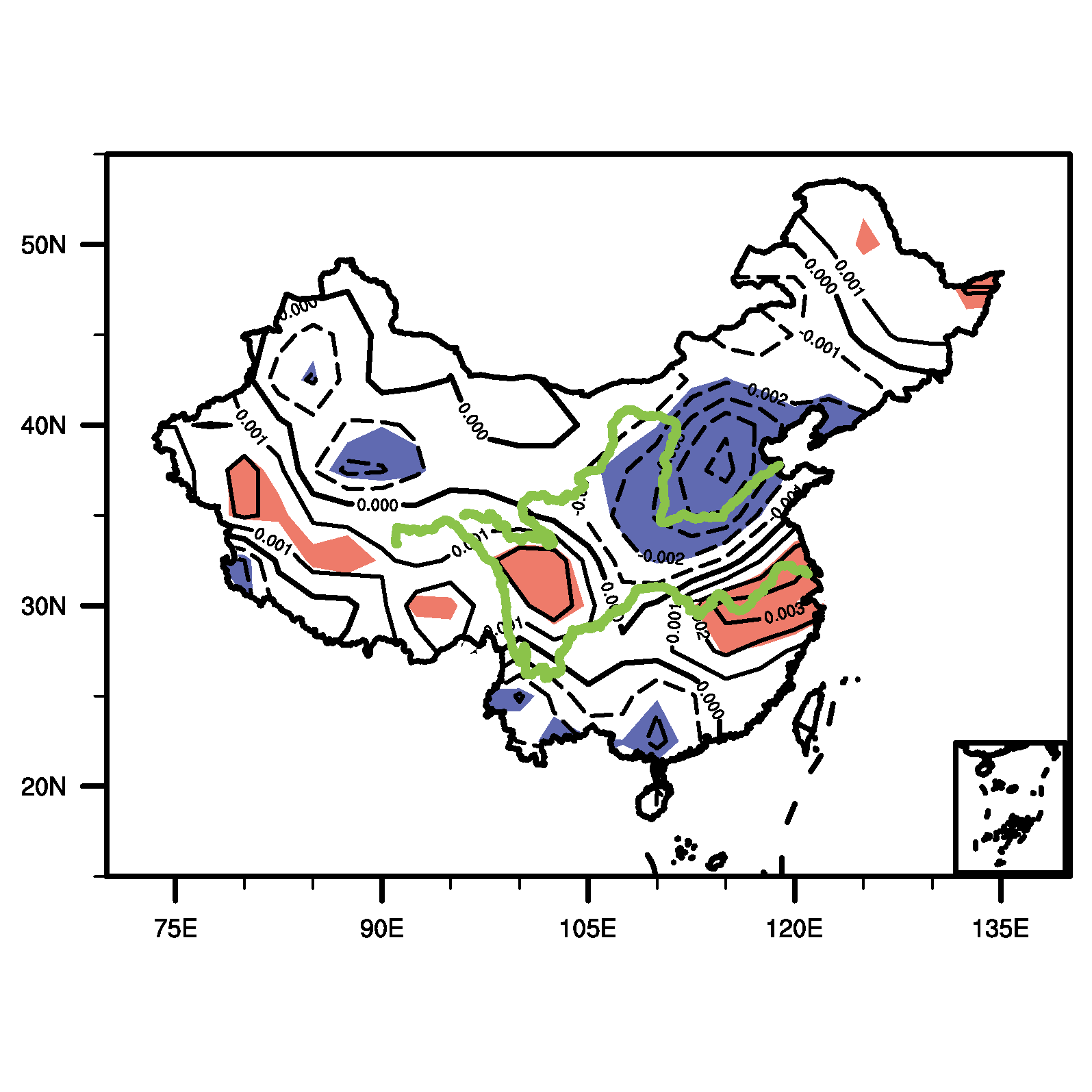

Figure 3 Anomalies of vertical velocity at 500 hPa in JJA regressed on the INLSSW during 1958-2001. Red (Blue) shading denotes positive (negative) anomalies that are significantly different from zero at the 95% confidence level. Contour interval is 0.001 Pa s-1. Note that positive (negative) values of vertical velocity represent downward (upward) motion.

We further discuss the atmospheric circulation and SST anomalies to help understand the interannual variability of INLSSW. Figure 4 displays the JJA 850 hPa wind anomalies obtained by regression on the INLSSW. To help explain the winds anomalies in association with INLSSW, the JJA SST anomalies are also shown in Fig. 4. A cyclonic circulation anomaly is observed to the northwest of the Philippines and an anticyclonic circulation over East China. Southerly wind anomalies over East China, extending from the southern to the northern part of East China indicate that southerly winds can penetrate farther north. In addition, southerly wind anomalies transport more moisture northward and result in above- normal precipitation over North China (Fig. 2). Westerly wind anomalies can be observed over the North Indian Ocean, indicating a stronger EASM (Wang et al., 2008). In the presence of westerly wind over the Indian Ocean in summer, westerly wind anomalies would enhance the climatological wind speed and lead to negative SST anomalies in the Indian Ocean via the enhancement of upward latent heat flux. In the tropical eastern Pacific, easterly wind anomalies are accompanied by negative SST anomalies. Previous studies (Wang et al., 2000) have demonstrated that an anticyclonic circulation anomaly can be observed over the tropical western Pacific when the central and eastern Pacific is covered by positive SST anomalies. The anticyclonic circulation anomaly persists into the following summer via local air-sea interaction. Note that significant negative SST anomalies in the Indian Ocean may also be important for the persistence of La Niñ a-associated cyclonic circulation anomalies over the tropical western Pacific. Xie et al. (2009) demonstrated tropical Indian Ocean warming emanates a baroclinic Kelvin wave into the Pacific. In the northwestern Pacific, this equatorial Kelvin wave induces suppressed convection and the anomalous anticyclone. It should be mentioned that significant negative precipitation anomalies can be observed over the Indian Ocean (figures not shown). Therefore, SST anomalies in the tropical eastern Pacific and Indian Ocean may both be important for the existence of cyclonic circulation anomalies in association with the INLSSW over the tropical western North Pacific. In addition, the anticyclonic circulation anomalies are likely a Rossby wave response to the cyclonic circulation anomalies in the tropical North Pacific, resembling the East Asia-Pacific or Pacific-Japan pattern identified in previous studies (Nitta, 1987; Huang and Wu, 1989).

Figure 4 Anomalies of JJA SST (contours) and winds at 850 hPa (vectors) regressed on the INLSSW during 1958-2001. Red (Blue) shading denotes positive (negative) SST anomalies that are significantly different from zero at the 95% confidence level. Contour interval is 0.04° C. The wind vector scale is shown in the top-right corner (units: m s-1).

To compare the lead-lag relationship of INLSSW and different EASM indices with the SST anomalies over the Indian Ocean and eastern Pacific Ocean, Fig. 5 displays the lead-lag correlation coefficients of the INLSSW, and the EASM defined by Wang and Fan (1999), Li and Zeng (2002), Wang et al. (1998), and Zhang et al. (2003) with the SST anomalies over the Indian Ocean (averaged over the region (5° S-10° N, 50-90° E)) and the eastern Pacific Ocean (averaged over the region (10° S-10° N, 80-130° W)). These regions are selected based on the larger SST anomalies shown in Fig. 4. Figure 5 indicates that the correlation of INLSSW with SST anomalies over the Indian Ocean and eastern Pacific Ocean are larger than those between the EASM indices and SST anomalies. The INLSSW has significant negative correlations with the SST anomalies over the Indian Ocean from January to December. For comparison, the EASM indices have significant negative correlations with the SST anomalies from the previous December to July. Meanwhile, the INLSSW has significant negative correlations with the SST anomalies over the eastern Pacific Ocean from February to November. However, the EASM indices have significant negative correlations with the SST anomalies from the previous December to August. In addition, the correlation between the INLSSW and SST anomalies is larger than that between the EASM indices and SST anomalies in JJA. Over both the Indian Ocean and eastern Pacific Ocean, INLSSW has a closer correlation with later SST anomalies from August to December.

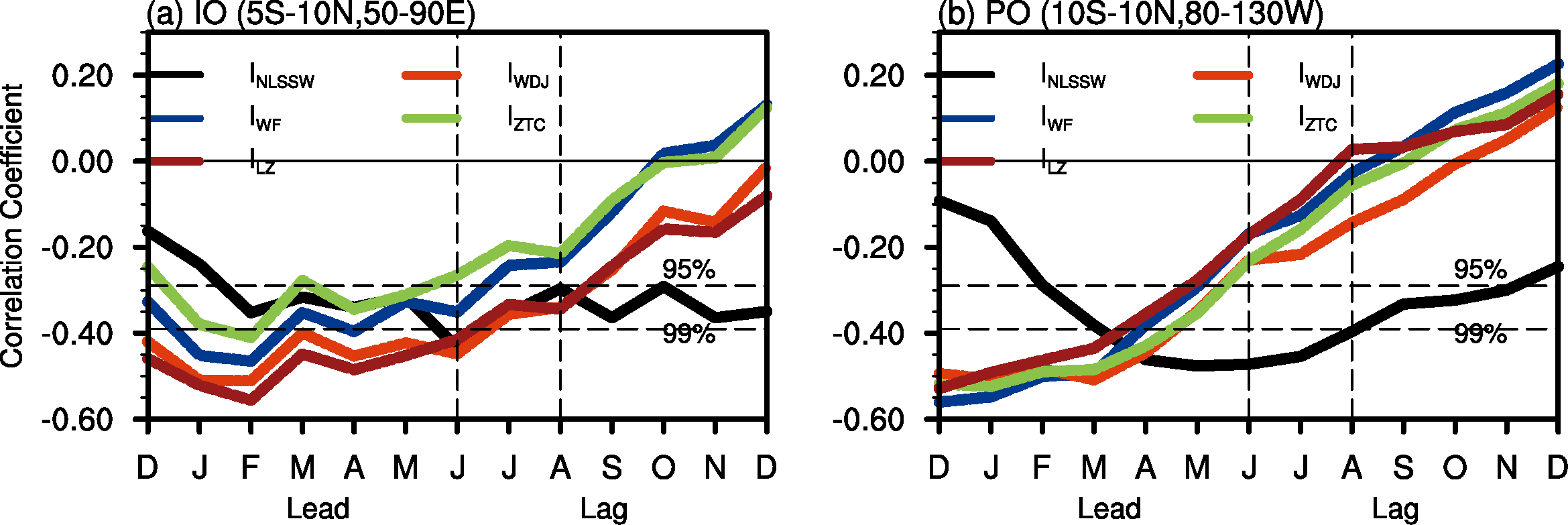

Figure 5 Lead-lag relationship between INLSSW (black line), IWF (blue line), ILZ (brown line), IWDJ (red line), IZTC (green line), and the SST anomalies averaged over the (a) Indian Ocean (5° S-10° N, 50-90° E) and (b) East Pacific Ocean (10° S-10° N, 80-130° W).

4 Conclusion

This paper examines the relationship between summer monsoon and precipitation in East China using NCEP/NCAR, ERA40, and Chinese 160 station data for the period 1958-2001. A representation of the northernmost location of the East China summer monsoon in JJA, which is defined as the latitude where the zonal-averaged (105-120° E) low-level (averaged between 925 hPa and 850 hPa) meridional wind is equal to zero, is given. The results show that there is a significant negative (positive) correlation between the limit of the southerly wind and the precipitation in summer over the Yangtze River (North China) region, and significant positive correlation between the limit of southerly wind and the strength of v-wind over Region2 (27-35° N, 100-120° E) and Region3 (36-42° N, 100-120° E). The proposed INLSSW may provide a new method for predicting summer monsoon strength and precipitation anomalies over the northern (central) part of East China.

In positive (negative) INLSSW years, a cyclonic (anticyclonic) circulation anomaly is observed over the tropical western North Pacific and an anticyclonic (cyclonic) circulation anomaly over most parts of East China, accompanied by southerly (northerly) anomalies over East China, leading to more (less) moisture in North China. In addition, significant upward (downward) motion anomalies are observed over North China, and significant downward (upward) motion anomalies over the central part of East China. As a result, there are significant positive (negative) precipitation anomalies over the northern part of East China and negative (positive) precipitation anomalies over the central part of East China. Further results show that negative (positive) SST anomalies over the tropical eastern Pacific and Indian Ocean both contribute to the formation of INLSSW-related circulation anomalies over the tropical western North Pacific and East China.

It should be emphasized that the INLSSW defined in this study is independent of the EASM indices used in previous studies. We also compare the lead-lag relationship of the INLSSW and different EASM indices with SST anomalies over the Indian Ocean and eastern Pacific Ocean regions. Results show that the correlations of the INLSSW with SST anomalies over the Indian Ocean and eastern Pacific Ocean are larger than those between the SST anomalies and the EASM indices used in previous studies. Hence, the INLSSW defined in this study could be used as an effective predictor of summer precipitation anomalies in the Yangtze River and North China regions.


Acknowledgments

We wish to express our sincere gratitude to Prof. Tim LI of the University of Hawaii for his insightful suggestions, and also thank the two anonymous reviewers for their valuable comments and suggestions, which helped to improve the paper. This study was supported by the National Natural Science Foundation of China (Grant No. 41230527).

Reference
1 Chang C. P. , Y. Zhang, and T. Li, 2000 a: Interannual and interdecadal variations of the East Asian summer monsoon and tropical Pacific SSTs. Part I: Roles of the subtropical ridge, J. Climate, 13, 4310-4325.
2 Chang C. P. , Y. Zhang, and T. Li, 2000 b: Interannual and interdecadal variations of the East Asian summer monsoon and tropical Pacific SSTs. Part II: Meridional structure of the monsoon, J. Climate, 13, 4326-4340.
3 Ding Y. H. , 2004: Seasonal march of the East-Asian summer monsoon, in: The East Asian Monsoon, World Scientific, Beijing, 30-53.
4 Ding Y. , J. C. L. Chan, 2005: The East Asian summer monsoon: An overview, Meteor. Atmos. Phys. , 89, 117-142.
5 Hu H. R. , W. H. Qian, 2007: Identifying the northernmost summer monsoon location in East Asia, Prog. Nat. Sci. , 17, 57-65.
6 Huang R. , Y. F. Wu, 1989: The influence of ENSO on the summer climate change in China and its mechanism, Adv. Atmos. Sci. , 6, 21-32.
7 Huang R. H. , G. Huang, and Z. G. Wei, 2004: Climate variations of the summer monsoon over China, in: East Asian Monsoon, C. -P. Chang et al. (Eds. ), World Scientific Series on Meteorology of East Asia, World Scientific, Beijing, 600pp.
8 Kalnay E. , M. Kanamitsu, R. Kistler, et al. , 1996: The NCEP/ NCAR reanalysis 40-year project, Bull. Amer. Meteor. Soc, 77, 437-471.
9 Lau K. M. , K. M. Kim, and S. Yang, 2000: Dynamical and boundary forcing characteristics of regional components of the Asian summer monsoon, J. Climate, 13, 2461-2482
10 Lau K. -M. , M. -T. Li, 1984: The monsoon of East Asia and its global associations—A survey, Bull. Amer. Meteor. Soc. , 65, 114-125.
11 Li J. , Q. Zeng, 2002: A unified monsoon index, Geophys. Res. Lett. , 29, doi: DOI:10.1029/2001GL013874.
12 Ninomiya, K. , T. Murakami, 1987: The early summer rainy season (Baiu) over Japan, in: Monsoon Meteorology, C. -P. Chang and T. N. Krishnamurti (Eds. ), Oxford University Press, Oxford, 93-121.
13 Nitta T. , 1987: Convective activities in the tropical western Pacific and their impact on the Northern Hemisphere summer circulation, J. Meteor. Soc. Japan, 65, 373-390.
14 Tanaka M. , 1997: Interannual and interdecadal variations of the western North Pacific monsoon and Baiu rainfall and their relationship to the ENSO cycles, J. Meteor. Soc. Japan, 75, 1109-1123.
15 Tao, S. Y. , L. X. Chen, 1987: A review of recent research on the East Asian summer monsoon in China, in: Monsoon Meteorology, C. P. Chang and T. N. Krishnamurti (Eds. ), Oxford University Press, Oxford, 60-92.
16 Tu C. W. , S. S. Huang, 1944: The advances and retreats of the summer monsoon in China, Acta Meteor. Sinica (in Chinese), 18, 1-20.
17 Uppala S. M. , P. W. KÅllberg, A. J. Simmons, et al. , 2005: The ERA-40 re-analysis, Quart. J. Roy. Meteor. Soc. , 131, 2961-3012.
18 Wang A. Y. , C. S. Wu, and J. J. Ling, 1999: Definition of the advance and retreat of the summer monsoon in the eastern part of China, Plateau Meteor. (in Chinese), 18, 400-408.
19 Wang B. , Z. Fan, 1999: Choice of South Asian summer monsoon indices, Bull. Amer. Meteor. Soc. , 80, 629-638.
20 Wang B. , H. Lin, 2002: Rainy season of the Asian-Pacific summer monsoon, J. Climate, 15, 386-398.
21 Wang B. , R. Wu, and X. Fu, 2000: Pacific-East Asian teleconnection: How does ENSO affect East Asian climate?J. Climate, 13, 1517-1536.
22 Wang B. , R. Wu, and K. M. Lau, 2001: Interannual variability of the Asian summer monsoon: Contrasts between the Indian and the Western North Pacific-East Asian monsoons, J. Climate, 14, 4073-4090.
23 Wang B. , Z. Wu, J. Li, et al. , 2008: How to measure the strength of the East Asian summer monsoon, J. Climate, 21, 4449-4463.
24 Wang Q. , Y. H. Ding, and Y. Jiang, 1998: Relationship between Asian monsoon activities and the precipitation over China mainland , J. Appl. Meteor. (in Chinese), 9, 84-89.
25 Xie S. -P. , K. Hu, J. Hafner, et al. , 2009: Indian Ocean capacitor effect on Indo-Western Pacific climate during the summer following El Niño, J. Climate, 22, 730-747.
26 Zhang Q. Y. , S. Y. Tao, and L. T. Chen, 2003: The interannual variability of East Asian summer monsoon indices and its association with the pattern of general circulation over East Asia, Acta Meteor. Sinica (in Chinese), 61, 559-568.
